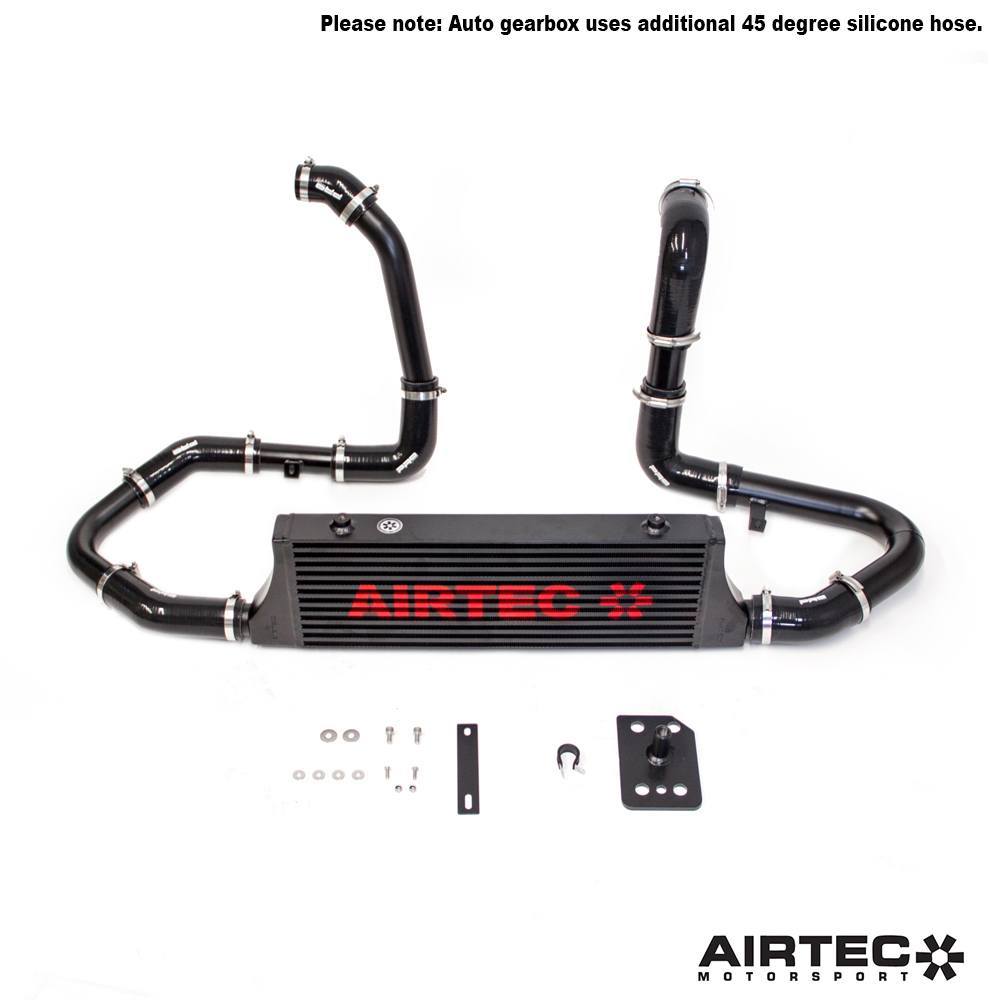

AIRTEC Motorsport Fiat 595 Abarth 60mm core Intercooler upgrade (Automatic Gearbox)

Description

Replaces very restrictive twin intercooler setup and lengthily pipe-work, for Airtec’s high flow 60mm core intercooler and shortened alloy pipe kit, we keep fast Turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body, this combination gives fast turbo spool up and maximum power output

Dyno test results – results taken from Fiat 500 Abarth Auto, with standard map, intercooler & exhaust results from AMD Essex.

• Run 1. 75 degree into the intercooler and 40 degree out of the intercooler – 168 BHP
• Run 2. 73 degree into the intercooler and 42 degree out of the intercooler – 166 BHP

Dyno test results – results taken from Fiat 500 Abarth Auto with Airtec FMIC, Miltek turbo back results from AMD Essex.

• Run 1. 64 degree into the intercooler and 19 degree out of the intercooler
• Run 2. 67 degree into the intercooler and 20 degree out of the intercooler
• Run 3. 69 degree into the intercooler and 21 degree out of the intercooler

Features

• 60mm thick proven bar and plate core, specked to Airtec design
• Airtec logo’d Cast end tanks for improved Airflow and un-beatable strength
• Dyno proven, gain BHP
• Lower intake temps means safer engines ‘FACT’
• Shorter charge pipes than standard twin intercooler set-up, short pipes mean fast turbo spool up
• Fitting takes 2-3 hours
• 3 year un-limited mileage warranty
• Available in Pro-Series Satin Black Only
• Airtec Logo available @ no extra charge
• Un-beatable value for money

Will fit any Abarth with Garrett GTI446 Turbo.

Will fit the following:

Series 3 180 Competizione (Mid-Late 2015)

Series 4 Turismo

Series 4 Competizione

This intercooler will fit with the automatic paddle shift gearbox.
